Radiant Underfloor Heating 200W In Screed Professional *Cable Kit*

In screed heating is the popular choice for living areas that are having a sand and cement

screed to level up the floor, prior to laying large format, rectified or stone tiles. With this system. The heating cables are fixed to the slab prior to screeding and then are fully protected during the tiling process.

In Screed heating is also the popular choice in bathrooms in states where the floors are screeded (WA, SA, NSW, QLD) in Victoria and Tasmania where bathrooms are generally not screeded, under-tile is the system of choice.

For bathrooms the system can be supplied pre-spaced on mats, or as loose cable on a drum to suit the space and preferred installation method by the installer. Where possible installing a thin Thermasheet insulating board below the screed with reduce the downward heat loss and improve warm-up times – this is ideal in a bathroom where the heating is generally only needed for shorter periods of time.

In screed systems are typically installed at between 100-150 watts per sqm in living areas

and between 180-200 watts per sqm in bathrooms where there is usually limited free floor area a quicker warm-up is required.

Our in-screed floor heating kit is perfect for putting floor heating under tiles, where the floor will be screeded. The cable is installed and then covered with screed. The 7mm cables are fully hidden away in the screed meaning that the tiler has a flat freshly screeded surface to work on. This kit is a professional kit where the cable comes loose on a drum and wire mesh is supplied along with cable ties. This is an especially popular solution for experienced fitters or when the area is an awkward shape.

In Screed
Professional Cable Kit
Use In: Bathroom

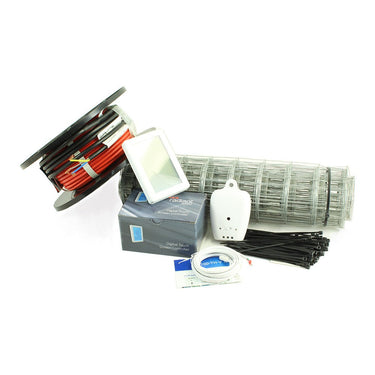

Kit Includes:
- Heating Cable on Spool
- TS8100-TH-V Thermostat
- Cable Alarm
- Galvanised Wire Mesh
- Cable Ties
- Full Instructions
Cable Length: optional
Standard 240V
Wattage: 200W
Watts per Sqm: 200W per sqm
IP Rating: IPX7
Cable Thickness: 7mm
Warranty: 10 years (2 years on Thermostat)
In Screed Cable Kit Installation
Under Floor Heating Kits Warranty Registration Form
Radiant Underfloor Heating Kits brochure
