- Outlet Size:40/50/65/80/100mm
- Stormtech Updated Warranty & Care
- 3 Weeks Lead Time - Custom Make

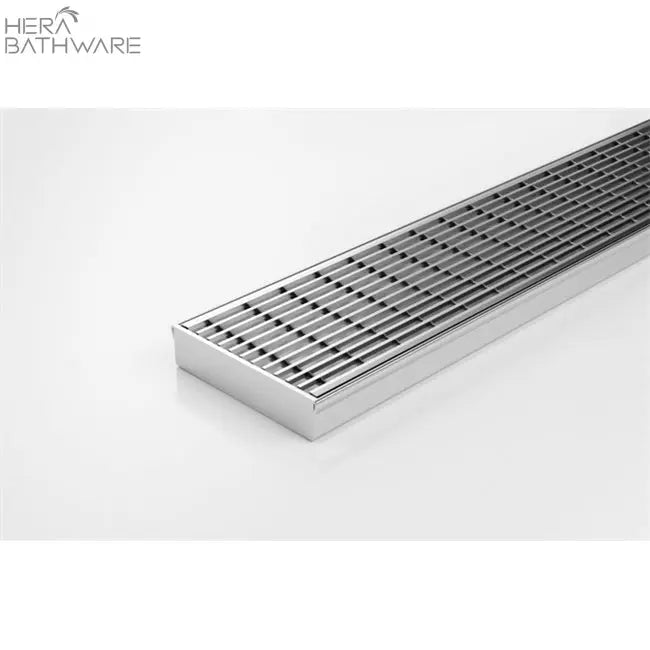

The 100AR is the original premium architectural grate featuring a 2mm wire/2.5mm gap.
Manufactured from 316 marine grade stainless steel this drainage is made to specified length with specified outlet position
Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
Product Code | 100ARi20MTL |
---|---|
Range | 100 Range |
Grate Style | AR |
Kit Type / Category | Made-to-Length |

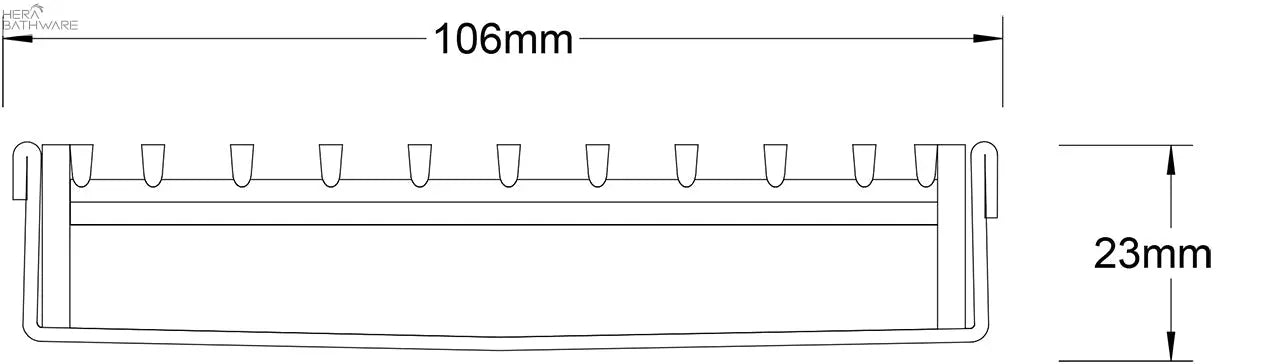

Channel Width | 106mm |
Channel Depth | 23mm |
Length(s) | Custom |
Channel Material | Stainless Steel |
Steel Grade | 316 Grade Stainless Steel |
Greentag | ✔ |
Watermark | ✔ |
Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
BIM Model | Download BIM |
