Flush Cap for Solid Surface Shower Base ONLY | Versa-tile

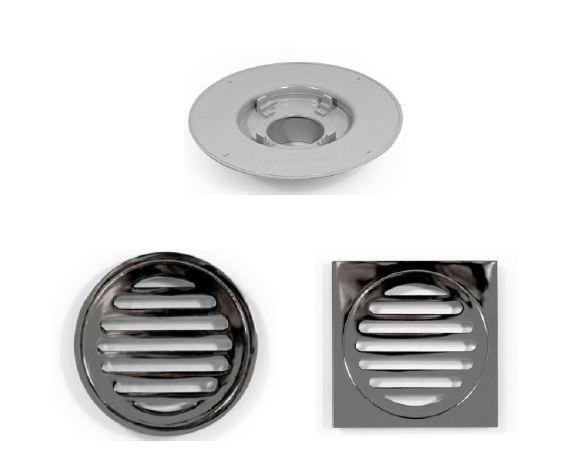

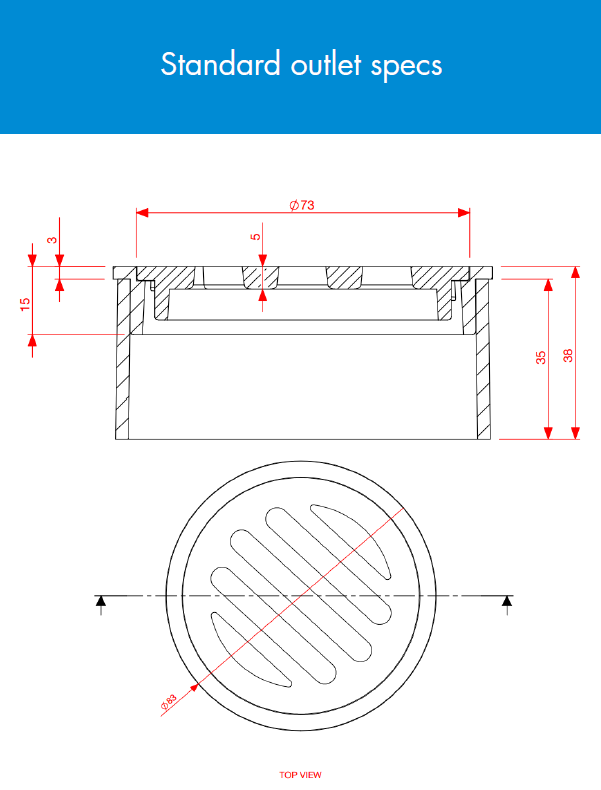

• A complete puddle flange kit will be supplied, including the puddle flange, square chrome outlet, and matching chrome grate

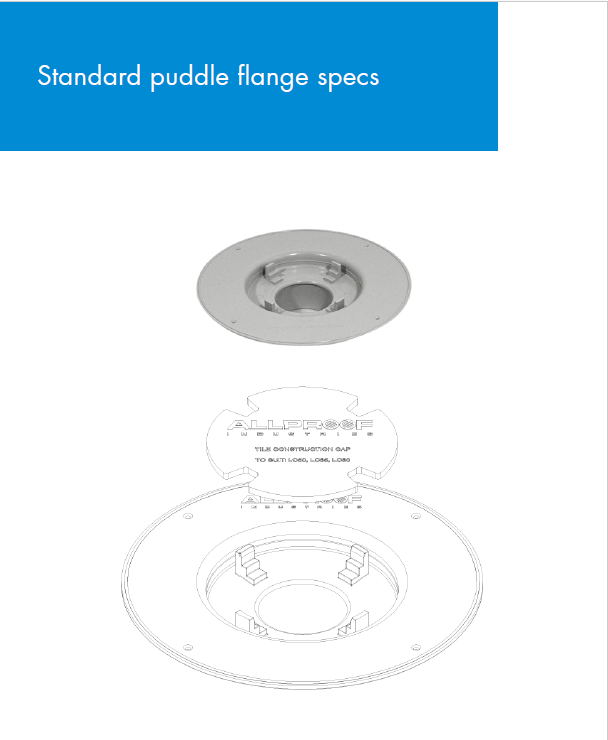

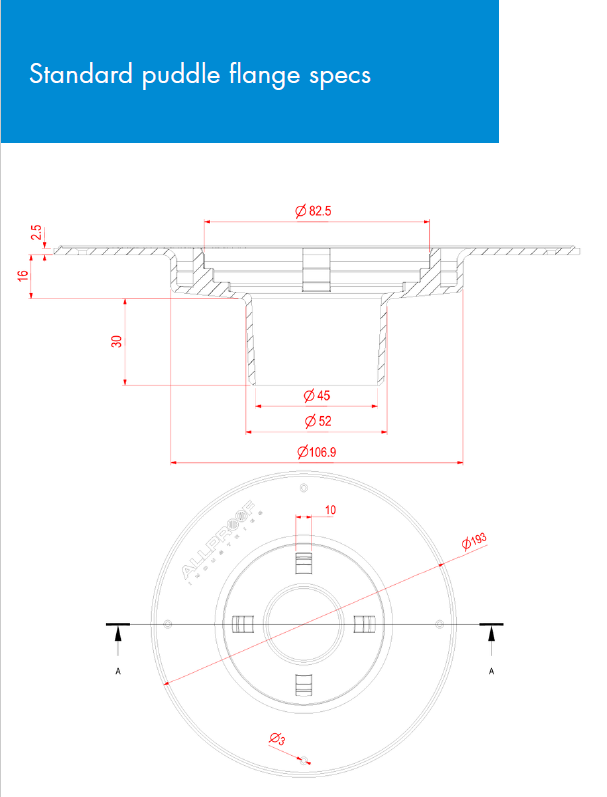

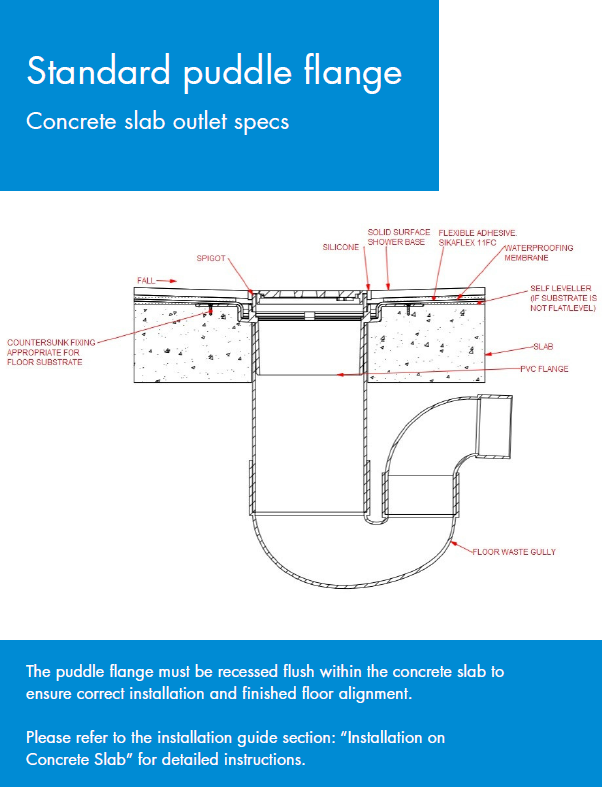

• 80mm Leak Control Puddle Flange System designed for both concrete and timber substrates.
• The waste assembly sits directly on the shower base and integrates with the puddle flange provided within the kit.
• Suits all substrate types
• Colour options: Chrome & Black

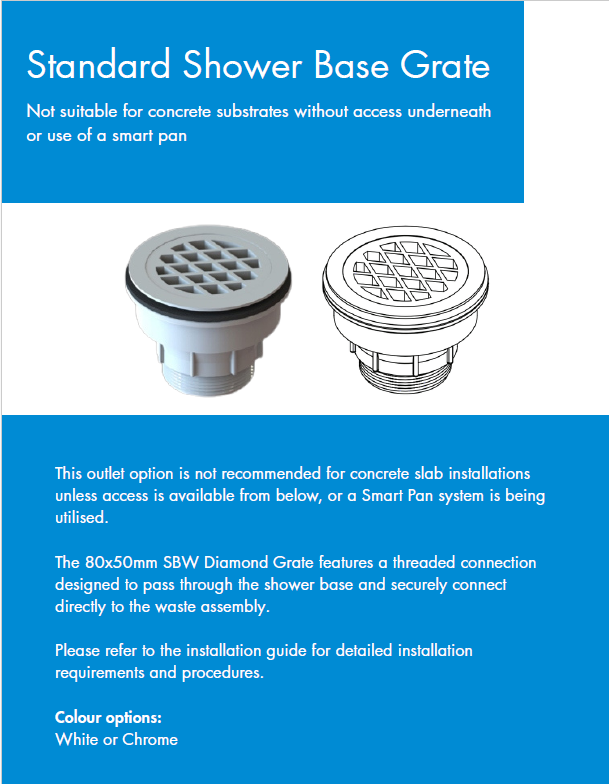

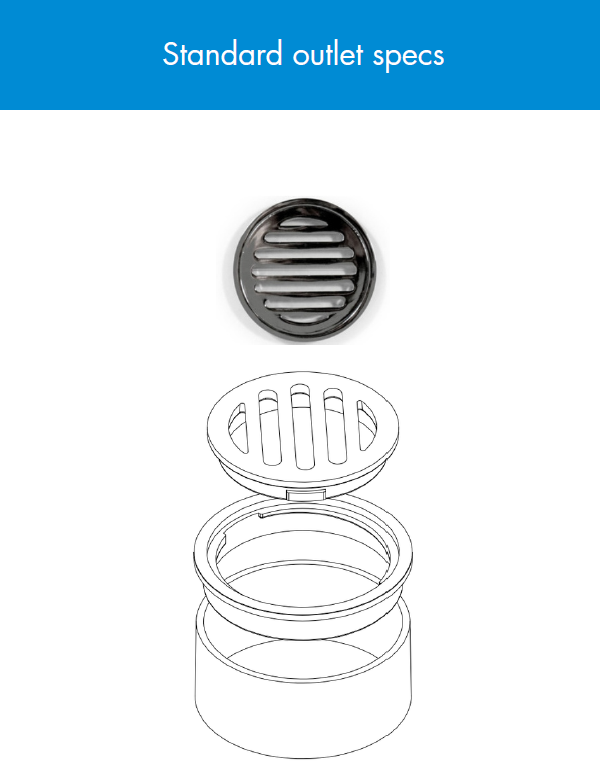

Screw in waste | White or Chrome plated plastic

• This outlet option is not recommended for concrete slab installations unless access is available from below, or a Smart Pan system is being utilised.

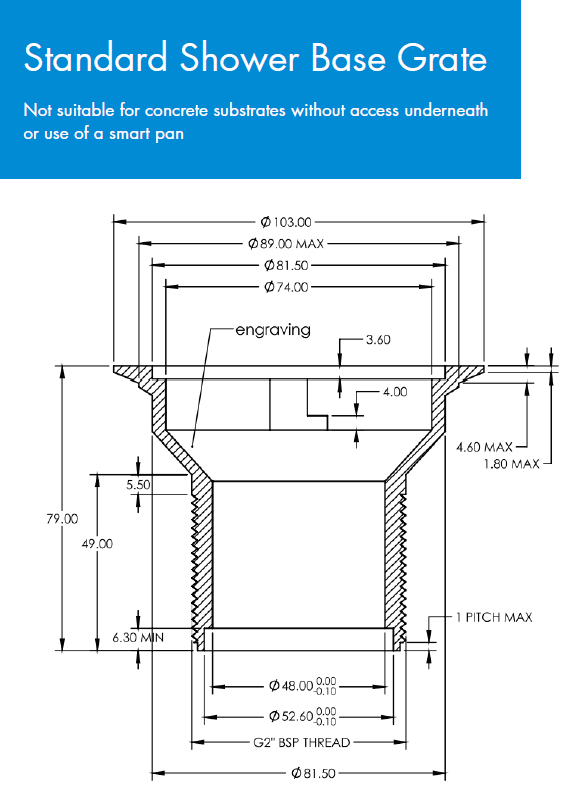

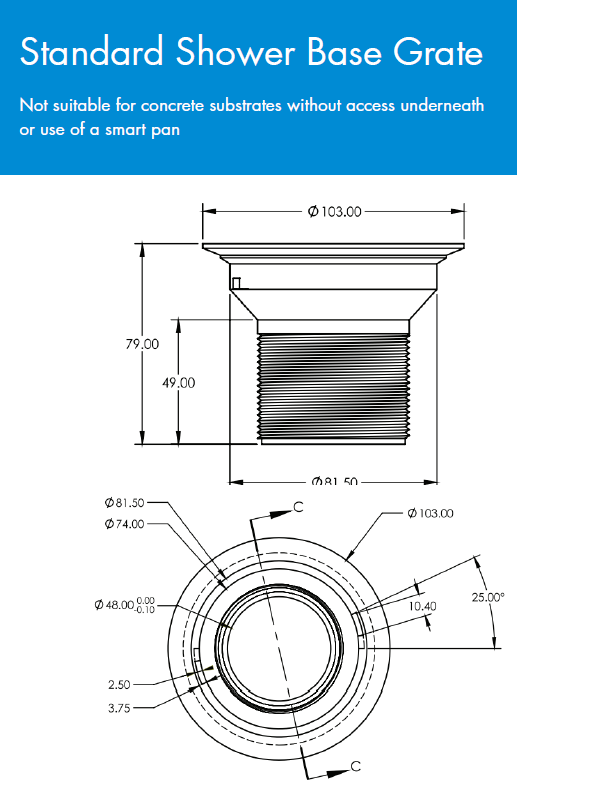

• The 80x50mm SBW Diamond Grate features a threaded connection designed to pass through the shower base and securely connect directly to the waste assembly.
• Please refer to the installation guide for detailed installation requirements and procedures
• Not suitable for concrete substrates without access underneath or use of a smart pan
• Suitable for timber substrates, or use with a smart pan (access underneath)
• Colour options: Chrome & White Plastic

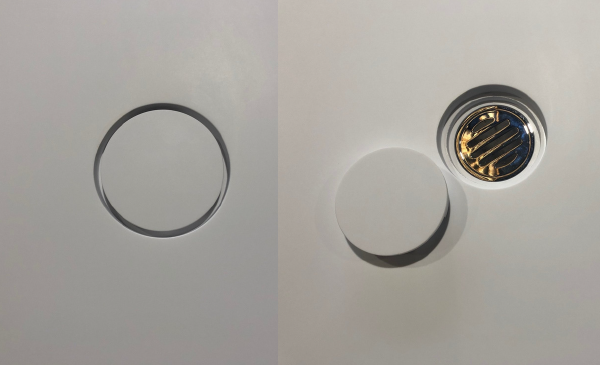

Flush cap | Colour matched to your base colour

The flush cap is manufactured from matching solid surface material to seamlessly integrate with your selected shower base colour and finish, creating a clean, minimalist appearance.

• 22mm thick solid surface flush cap
• 150mm diameter disc

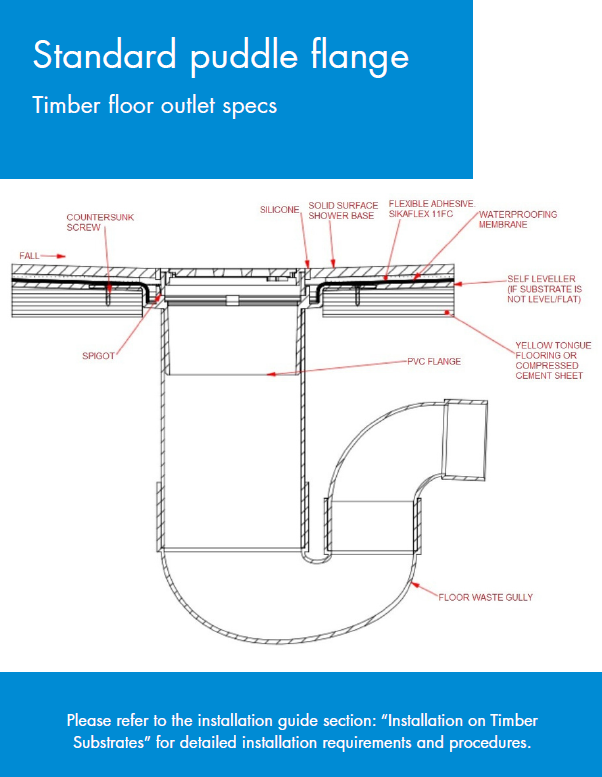

• Timber floor installations require a 160mm–170mm diameter cut-out within the substrate
• For concrete substrates, installation must be completed over a Smart Pan system, with the lid providing support around the waste area
• Not suitable for concrete substrates without access underneath or use of a smart pan
• Provided with a screw in waste.
• Suitable for timber substrates, or use with a smart pan (access underneath)
• Available exclusively with the standard shower base grate Waste System
