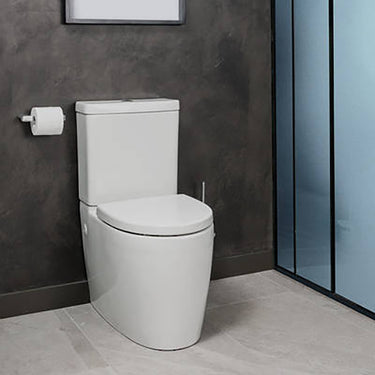

Grande Back to Wall Suite | Kohler

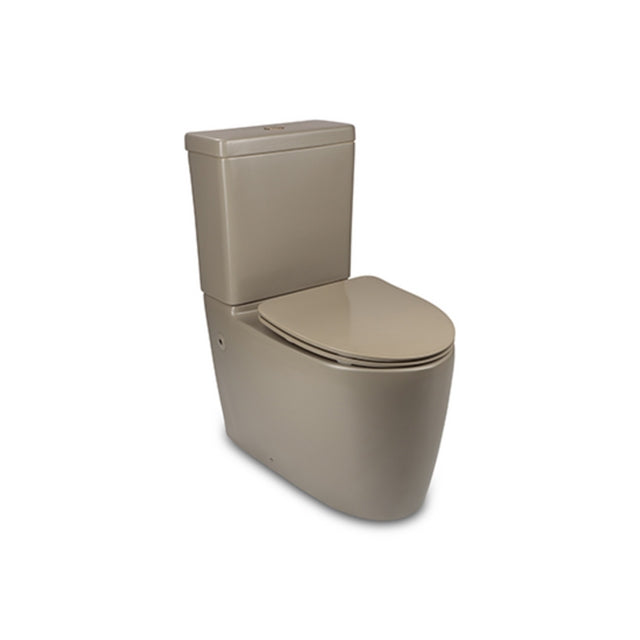

Now available in Cashmere, KOHLER’s Grande with rim-free technology for guaranteed hygiene and easy, effortless day-to-day care. The secret is an ultra efficient flush system, a special interior pan design that’s very smooth and rim-free so that every nook and cranny is accessible. Hygiene Max Rimless Technology. Maximum hygiene, maximum all-out clean. Available in a slim seat.

In Wall Cistern Not included

• Installation Instructions
• Product Information Flyer
• Specification Sheet

Feature

• Dual flush (4.5/3L)
• Slim seat
• Top left rear entry or right or left pan side entry
• P-trap set out height 185mm
• S-trap set out, Optional 1 (with Vario 12503A-NA pan connector), 110 – 140mm;
• Optional 2 (with Vario 12503A-NA + 20mm offset pan collar 100794), 90-160mm,
• Optional 3 (with Vario 77837A-NA long adjustable pan connector), 170-290mm
• Hygiene Max Rimless pan design
• Vitreous china

Installation Guide

• Water supply pressure range: 20 psi (137 kPa) – 72 psi (500 kPa)
• Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector & or pan offset collar (supplied)
• Top left rear entry water supply hose is supplied
• Pan side entry water supply hose must be purchased separately if required
• Supplied hose ring is only required with a pan side entry setup
